READY, SET, HONK!

Get ready to grab attention with the deafening bellow of the HornBlasters Rage 4-Chime 3-Liter Air Horn Kit. Specifically designed for vehicle enthusiasts who crave the bone-rattling sound of an air horn, this kit comes complete with everything you need to get up and honking in no time!

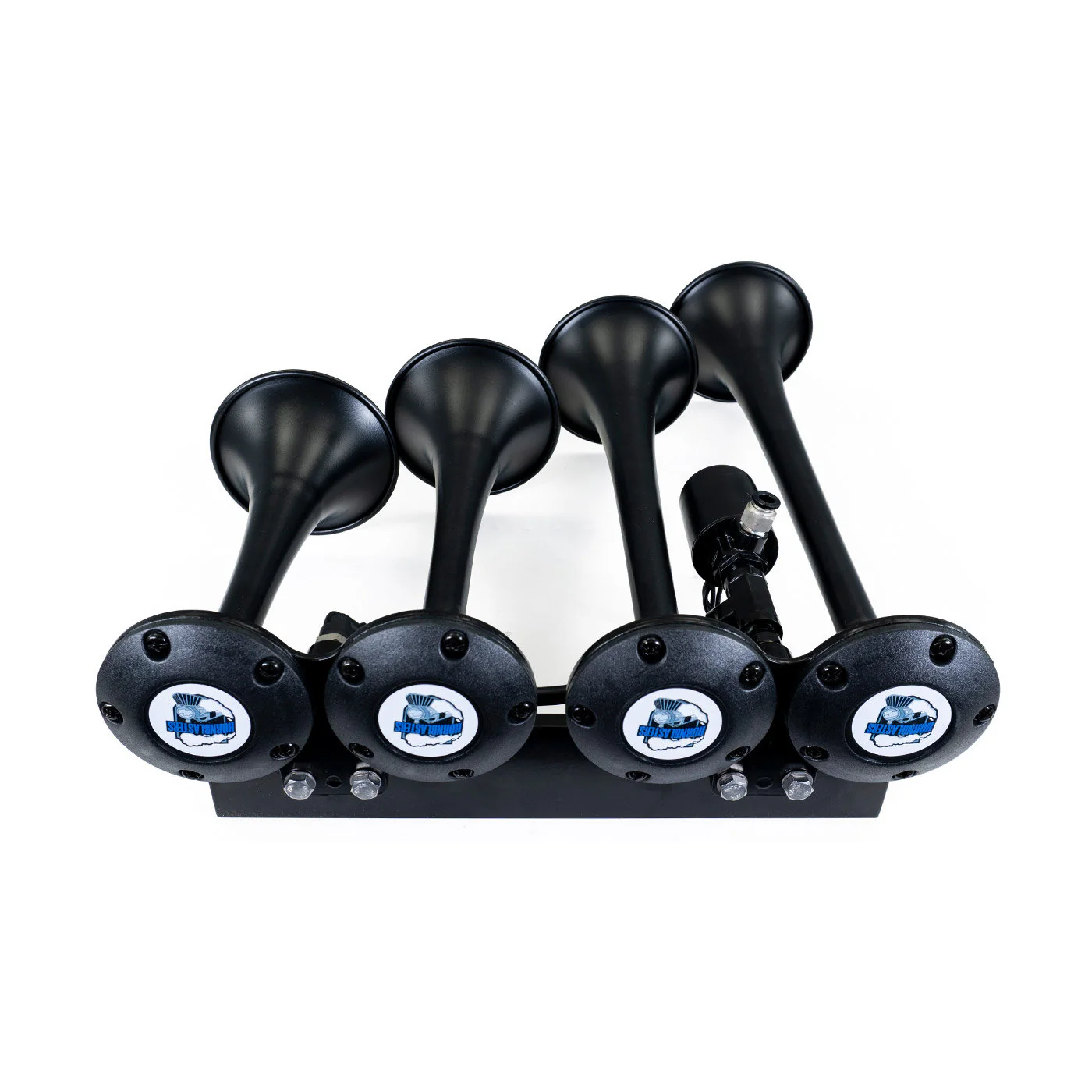

At the heart of this thunderous kit is a Rage 4-Chime Air Horn that boasts a pre-installed 1/4" air valve, ready to accept the included 1/4" air line, ensuring a hassle-free connection. The air source unit comes pre-plumbed and pre-wired, featuring a pre-attached air pressure gauge and pressure switch, making the installation process as straightforward as it gets.

Whether you're in traffic or out in the open road, this air horn kit is built to ensure that when you honk, you're heard. And not just heard, but felt!

Complete Kit: Comes with everything needed from start to finish for a hassle-free installation.
Powerful Sound: The Rage 4-Chime Air Horn generates a thunderous sound that's hard to ignore.
Durable Construction: Built to last with high-quality materials ensuring a long-lasting performance even in harsh conditions.
Sleek Design: Complements the aesthetics of your vehicle while delivering a powerful honk that resonates.

(Note: Tank-mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc... Failure to mount this product as directed will void the warranty)

**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **

HornBlasters 4-CHIME air horns
3 Liter air compressor & tank combo
Pre-installed 1/4" electric air valve
10ft of 1/4" air line
22ft of 10-gauge red wire
22ft of 18-gauge blue wire
Inline fuse holder, toggle switch, relay, and all electrical terminals
All fittings and mounting hardware
Instructions included
Over the phone technical support
Air line cutter
Earplugs

Part Number	HK-4CHIME-M3
Operating Pressure	120 PSI
Restart Pressure	90 PSI
Voltage	12-Volt DC
Horn Length	13.5" (342.9 mm)
Horn Width	13.25" (336.55 mm)
Horn Height	4.25" (107.95 mm)
Horn Weight	1.7 lb (0.77kg)
Air Source Kit	AC-M3 3 Liter Compressor and Tank Combo
Air Source Length	16.535" (420mm)
Air Source Width	4.921" (125mm)
Air Source Height	7.086" (180mm)
Air Source Weight	11.2lbs (5.08kg)
Max Amperage	18 Amps
Drain Port	1/8" NPT

3-LITER AIR TANK	FILL RATE
0 to 120 PSI	2 min. (± 10 sec.)
90 to 120 PSI	35 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly.
Warranty
This kit is backed by a 1-year manufacturer's defect warranty!
HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing.
Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise.
Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.

READY, SET, HONK — WITH MORE AIR BEHIND IT!

This isn't your factory horn. The HornBlasters Rage 4-Chime 127H Air Horn Kit is the upgrade your vehicle didn't know it needed. Specifically designed for vehicle enthusiasts who crave the bone-rattling sound of an air horn, this kit comes complete with everything you need to get up and honking in no time. The 127H upgrades your setup with a 1.5-gallon tank, 120 PSI operation, and a weather-sealed compressor that refills in just 35 seconds so you're never waiting long to unleash it again.

At the heart of this kit is a Rage 4-Chime Air Horn with a pre-installed 1/4" air valve, ready to accept the included 1/4" air line for a hassle-free connection. The air source unit comes pre-plumbed and pre-wired, featuring a pre-attached air pressure gauge and pressure switch, making installation as straightforward as it gets.

Whether you're in traffic or out on the open road, this air horn kit is built to ensure that when you honk, you're heard. And not just heard, but felt.

Complete Kit: Comes with everything needed from start to finish for a hassle-free installation.
Powerful Sound: The Rage 4-Chime Air Horn produces a bone-rattling sound that's hard to ignore.
More Air, Faster Recovery: The 1.5-gallon tank operates at 120 PSI and refills in just 35 seconds, keeping you ready for action.
Weather-Resistant Build: A weather-sealed compressor and included 6-foot snorkel kit for air filter relocation means this system holds up in real-world conditions.
Built for the Long Haul: A 25% duty cycle ensures you're investing in a system designed for reliability and longevity.

**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **

HornBlasters 4-CHIME air horns
HornBlasters 127H air source unit
Pre-installed 1/4" electric air valve
20ft of 1/4" air line
22ft of 10-gauge red wire
22ft of 18-gauge blue wire
22ft of 18-gauge grey wire
Complete wiring kit with fuse holder & fuses
Mounting hardware
Earplugs
Air line cutter
DETAILED INSTRUCTIONS

SPECIFICATION
Part Number:	HK-4CHIME-127H
Operating Pressure:	120 PSI
Restart Pressure:	90 PSI
Voltage:	12-Volt DC
Horn Length:	13.5" (342.9 mm)
Horn Width:	13.25" (336.55 mm)
Horn Height:	4.25" (107.95 mm)
Horn Weight:	11.7 lb (0.77kg)
Air Source Kit:	127H Air Source Unit
Air Source Length:	15.2″ (386.08 mm)
Air Source Width:	5.9″ (149.86 mm)
Air Source Height:	12.8″ (325.12 mm)
Air Source Weight:	11.2lbs (5.08kg)
Max Amperage:	18 Amps

1.5-Gallon AIR TANK	FILL RATE
0 to 120 PSI	2 min. 10 sec. (± 10 sec.)
90 to 120 PSI	35 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts
